The Garrett PowerMax Stage 2 turbocharger upgrade for the 2017 -2021 F-150 and F-150 Raptor platform is engineered to increase engine performance capability while maintaining OEM installation specifications. This direct drop-in Stage 2 upgrade provides 54% more flow than OEM and will support up to 700+ BHP *. Improvements in compressor efficiency and flow can be attributed to the 60mm fully-machined compressor wheel. Turbine flow is increased by 52% compared to OEM with a 50mm Inconel turbine wheel and larger 0.45 A/R turbine housing. This turbocharger kit comes fully assembled, calibrated, and is outline interchangeable with the OE hardware to ensure a perfect fit every time. Contact your local authorized Garrett distributor for additional information and pricing. Garrett PowerMax 2017 - 2021 Ford F-150, F-150 Raptor Stage 2 Turbos have received California Air Resources Board (CARB) certification. This certification (EO D-871) means our product has been tested in accordance with manufacturer/OEM specifications and meets the emissions standards set by the state of California and is approved for use in all 50 states when used as a drop-in replacement for factory equipment

FEATURES AND BENEFITS

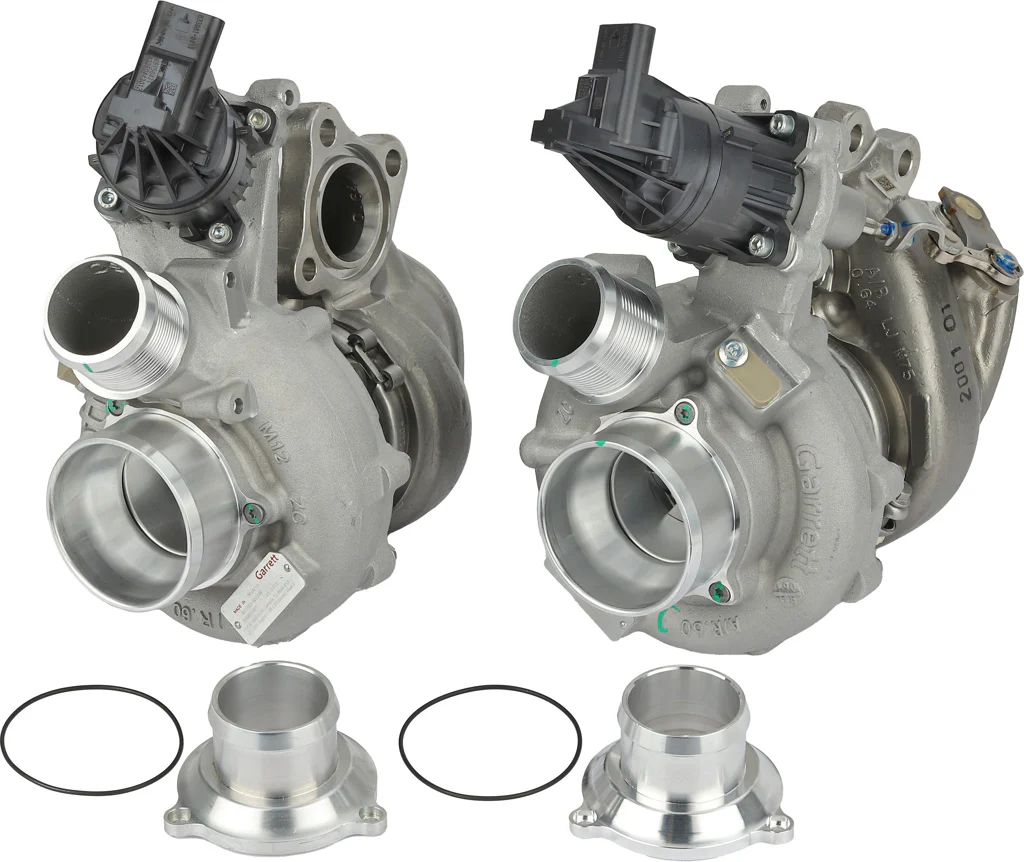

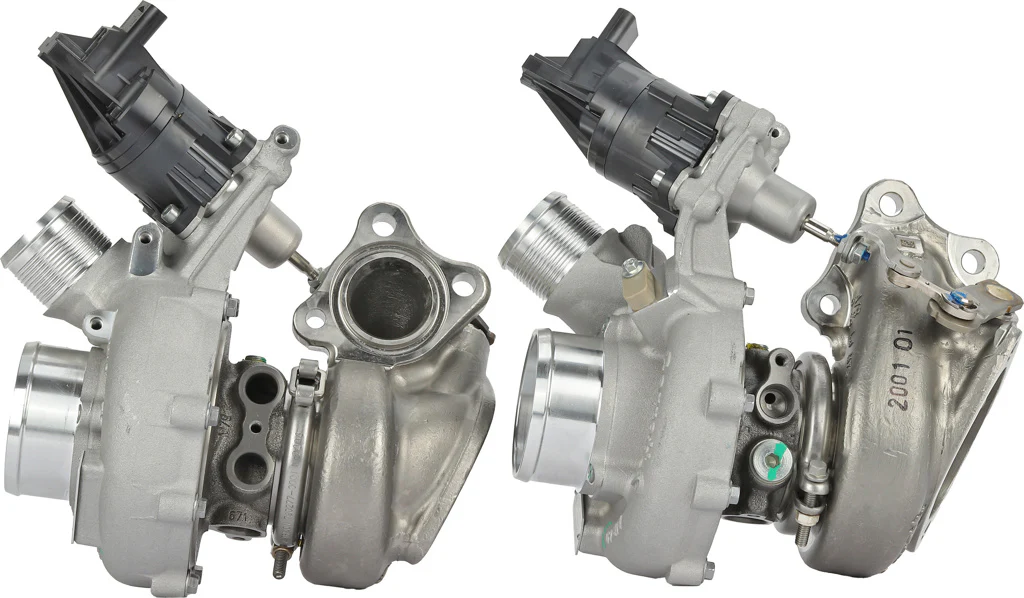

Direct-fit Stage 2 upgrade (LH & RH Turbos)
Compressor housing inlet (2.75) is larger than stock to allow for increased flow and optimized surge port.
Adapter for stock inlet tube included with turbo kit.
CARB Certified EO D-871.
Complete assembly with calibrated electric actuator.
Billet compressor wheel with 54% increased flow.
Inconel turbine wheel with 52% increased flow.
Modern compressor and turbine wheel aero.
Tuned ported shroud for optimal compressor surge and choke performance.
Speed sensor port: use PN 781328-0003 (street kit) or 781328-0004 (pro kit).
Journal-bearing rotating group.
Warranty: GARRETT 911984-5003S has a warranty of / 100000 MI

For warranty details visit warranty page here https://parts.alliantpower.com/en-us/vendor-warranty

APPLICATION

2017-2021 F-150 and F-150 Raptor platform

Garrett Motion is a global automotive technology company that offers solutions for both passenger and commercial vehicles, as well as aftermarket replacement and performance enhancement. Their technologies include:Turbocharging: Garrett's turbochargers utilize an engine's exhaust gas to drive a turbine wheel, which in turn drives a compressor wheel that supplies compressed air to the engine. This compressed air enhances fuel combustion efficiency, resulting in increased power and better fuel economy. Electric Boosting: Garrett's electric boosting technologies encompass high-speed electric motors, e-motor design, power electronics, and motor control systems. Automotive Software: Garrett's automotive software solutions assist the auto industry in meeting challenges such as global emissions standards. Cybersecurity: Garrett's cybersecurity systems enhance vehicle safety and connectivity. Garrett's technologies are employed by nearly every major global automaker and are also present in many of the world's most prestigious racing circuits, including Formula 1 and Formula 2.

Specifications

Brand: Garrett
Manufacturing Label: New
Gross Weight (LB): 45.0000011
Country/Region of Origin Code: MX
No.: GAR3692

Cross Reference

Replaces the following part numbers

9016545001W
901654-5001W
9016555001W
901655-5001W
9119845003S
911984-5003S
JL7Z6K682A
JL7Z-6K682-A
JL7Z6K682B
JL7Z-6K682-B

FEATURES AND BENEFITS

APPLICATION

Specifications

Cross Reference

YouTube video:

Alliant Power

New Turbos, Ford 3.5L 17-21, stg 2 left/right set 911984-5003S

Fuel Contamination Kit for Ford (2020-22) 6.7L Power Stroke, No Pump

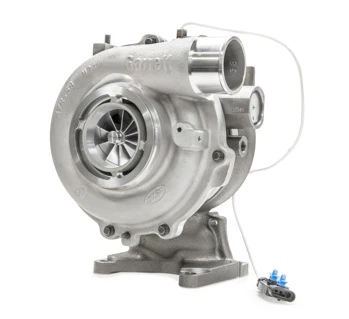

11-2016 GM 6.6L LML PowerMax Turbo 600HP
