Proheat Engine Heater - 1.5-4 qts, Model 154 CSA

Proheat Model 154 CSA | Heavy-Duty Fluid Reservoir Heater (125W)

The Proheat Model 154 CSA is a high-performance, heavy-duty heating solution designed to maintain optimal fluid temperatures in cold environments. This ultra-thin, flexible heating pad is ideal for pre-warming engine oil, hydraulic fluids, and water reservoirs to ensure reliable equipment startups and reduced wear.

Key Specifications

• Power: 125 Watts

• Electrical: 120 Volts, 1 Amp

• Dimensions: Compact 2.25" x 4" x .08" profile

• Power Cord: Included 6-foot cord for easy reach

Application Guide

This heater is versatile and suitable for several different fluid types and tank sizes:

• Engine Oil: Ideal for oil pans with a capacity of 1.5–4 quarts (or up to 1 gallon of lube/3.5 litres).

• Hydraulic Fluid: Best for tanks holding 1–10 gallons.

• Water Tanks: Recommended for reservoirs holding 5–20 gallons.

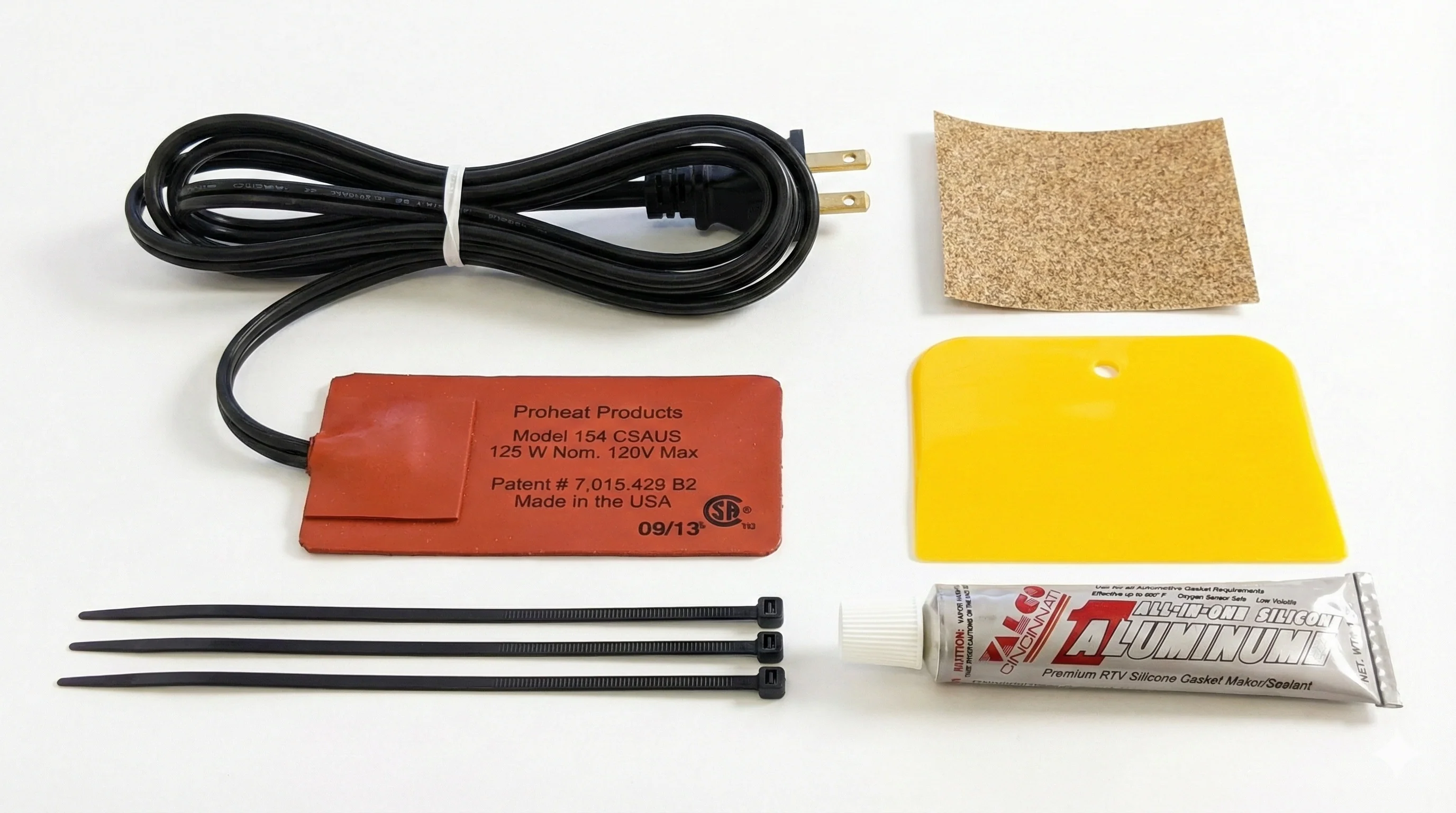

Complete Installation Kit

The package includes everything necessary for a secure, permanent mount:

• 125W Heating Pad with integrated power cord.

• High-Heat Adhesive for a strong bond to metal surfaces.

• Sandpaper for necessary surface preparation.

• Application Spreader for even adhesive distribution.

• Zip Ties to secure and organize the power cord.

Installation Tips

IMPORTANT SAFETY WARNING: Do NOT apply silicone, debris, dirt, or any material between the heater pad and the mounting surface. Any gap between the heater and the oil pan or reservoir can cause improper heat transfer, overheating, and may result in fire, damage to the vehicle, or personal injury. The heater pad must be applied directly to clean, bare metal.

Surface Preparation: Thoroughly clean and sand the reservoir or oil pan to clean, bare metal. Remove all oil, paint, rust, and debris.

Application: Peel off the backing and apply the heater pad directly to the reservoir or oil pan. Apply firm, even pressure.

Sealing: Use high-temperature silicone (such as Permatex 77BR or equivalent) to seal only the outer edges of the pad. Do not allow silicone to migrate underneath the heater.

Wiring: Route the power cord to a safe, secure location away from moving parts, sharp edges, or extreme heat sources.

Cold Weather Tip: Warm the mounting surface before installation (run the engine or use a heat gun). Keep the heater pad warm during application for maximum adhesion. A helpful tip is to plug the heater in for approximately 5 seconds prior to application.
