Proheat Engine Heater - 1.5-4 qts, Model 156 CSA

Proheat Model 156 CSA | Heavy-Duty Fluid Reservoir & Oil Pan Heater (125W)

The Proheat Model 156 CSA is a specialized, slim-profile heating solution designed for precision temperature maintenance in engines and industrial fluid tanks. This 125-watt heater provides efficient, direct-contact warmth to ensure smooth equipment startups and optimal fluid viscosity in cold weather conditions.

Key Features

• Optimal Heating Power: Delivers 125 Watts and 1 Amp of consistent heat.

• Low-Profile Design: Features an ultra-thin .08" thickness with unique 6" x 1.5" dimensions, ideal for narrow mounting areas.

• Standard Plug-and-Play: Equipped with a 6-foot power cord compatible with standard 120 Volt outlets.

• Professional Grade: Proudly made in the USA and CSA certified for safety and reliability.

Application Guide

This model is perfectly sized for small to mid-range fluid capacities:

Fluid Type	Tank/Reservoir Capacity
Engine Oil	1.5–4 Quarts (Up to 1 Gallon / 3.5 Litres)
Hydraulic Fluid	1–10 Gallons
Water	5–20 Gallons

Technical Specifications

• Model: 156 CSA

• Power: 125 Watts / 1 Amp

• Voltage: 120 Volts

• Dimensions: 6" x 1.5" x .08"

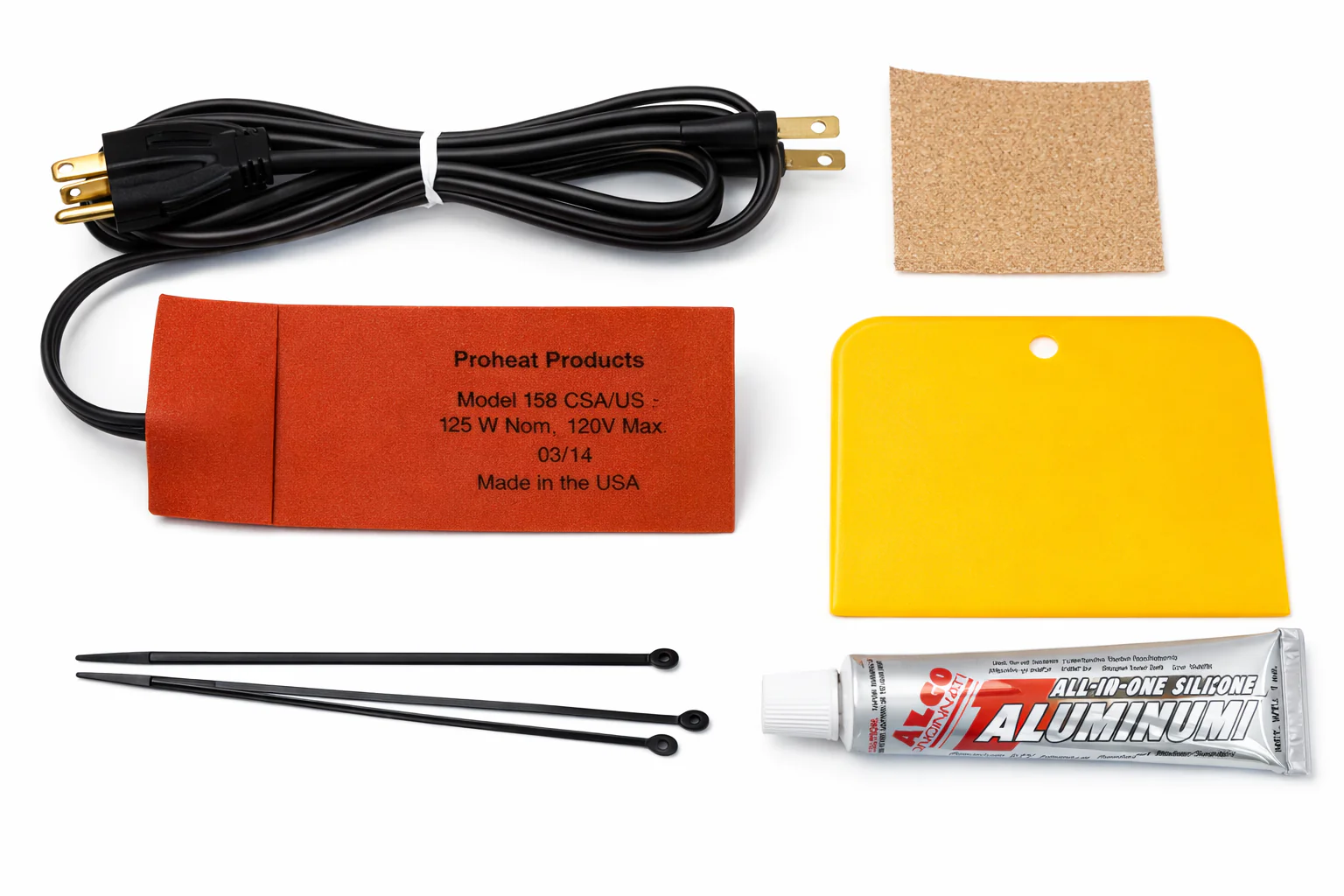

Complete Installation Kit

Each package contains all necessary components for a permanent, secure installation:

• 125W Slim Heating Pad with 6' integrated cord

• High-Heat Silicone Adhesive

• Surface Preparation Sandpaper

• Adhesive Application Spreader

• Cable Ties for professional wire routing

Installation Tips

IMPORTANT SAFETY WARNING: Do NOT apply silicone, debris, dirt, or any material between the heater pad and the mounting surface. Any gap between the heater and the oil pan or reservoir can cause improper heat transfer, overheating, and may result in fire, damage to the vehicle, or personal injury. The heater pad must be applied directly to clean, bare metal.

Surface Preparation: Thoroughly clean and sand the reservoir or oil pan to clean, bare metal. Remove all oil, paint, rust, and debris.

Application: Peel off the backing and apply the heater pad directly to the reservoir or oil pan. Apply firm, even pressure.

Sealing: Use high-temperature silicone (such as Permatex 77BR or equivalent) to seal only the outer edges of the pad. Do not allow silicone to migrate underneath the heater.

Wiring: Route the power cord to a safe, secure location away from moving parts, sharp edges, or extreme heat sources.

Cold Weather Tip: Warm the mounting surface before installation (run the engine or use a heat gun). Keep the heater pad warm during application for maximum adhesion. A helpful tip is to plug the heater in for approximately 5 seconds prior to application.
