Proheat Engine Heater - up to 2 qts, Model 32 CSA

Proheat Model 32 CSA | Heavy-Duty Fluid Reservoir & Oil Pan Heater (75W)

The Proheat Model 32 CSA is a compact, high-efficiency heating solution designed for small engines and specialized fluid reservoirs. This 75-watt heater provides targeted warmth to ensure reliable startups and prevent fluid thickening in cold weather, making it an essential cold-weather tool for smaller machinery.

Key Features

• Compact & Powerful: Delivers 75 Watts and 0.6 Amps of consistent heating power.

• Precision Sizing: Featuring a small 3" x 2" footprint and an ultra-thin .08" thickness, this pad fits into tight mounting areas where larger heaters cannot.

• Versatile Power: Equipped with a 6-foot power cord for easy connection to a standard 120 Volt outlet.

• Broad Compatibility: Ideal for a wide range of equipment including ATVs, snowblowers, golf carts, motorcycles, generators, and lawn tractors.

Application Guide

This model is optimized for small-capacity fluid reservoirs:

Fluid Type	Tank/Reservoir Capacity
Engine Oil	Up to 2 Quarts (1.8 Litres)
Hydraulic Fluid	Up to 10 Gallons

Technical Specifications

• Model: 32 CSA

• Power: 75 Watts / 0.6 Amp

• Voltage: 120 Volts

• Dimensions: 3" x 2" x .08"

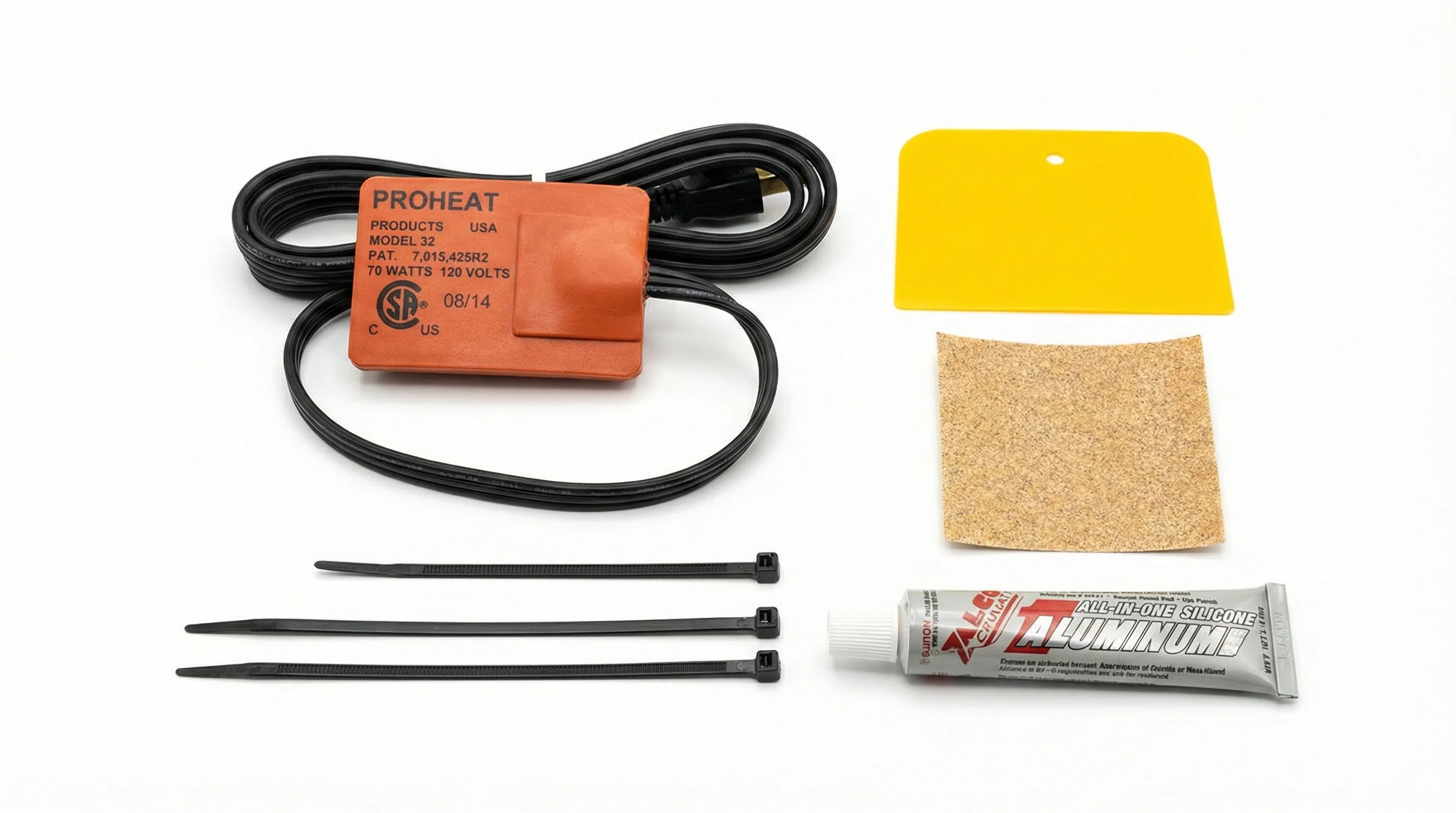

Complete Installation Kit

Each package comes with all the components necessary for a permanent, professional-grade installation:

• 75W Heating Pad with integrated 6' power cord.

• High-Heat Silicone Adhesive for secure bonding to metal surfaces.

• Surface Preparation Sandpaper.

• Adhesive Application Spreader.

• Cable Ties for clean and secure wire management.

Installation Tips

IMPORTANT SAFETY WARNING: Do NOT apply silicone, debris, dirt, or any material between the heater pad and the mounting surface. Any gap between the heater and the oil pan or reservoir can cause improper heat transfer, overheating, and may result in fire, damage to the vehicle, or personal injury. The heater pad must be applied directly to clean, bare metal.

Surface Preparation: Thoroughly clean and sand the reservoir or oil pan to clean, bare metal. Remove all oil, paint, rust, and debris.

Application: Peel off the backing and apply the heater pad directly to the reservoir or oil pan. Apply firm, even pressure.

Sealing: Use high-temperature silicone (such as Permatex 77BR or equivalent) to seal only the outer edges of the pad. Do not allow silicone to migrate underneath the heater.

Wiring: Route the power cord to a safe, secure location away from moving parts, sharp edges, or extreme heat sources.

Cold Weather Tip: Warm the mounting surface before installation (run the engine or use a heat gun). Keep the heater pad warm during application for maximum adhesion. A helpful tip is to plug the heater in for approximately 5 seconds prior to application.
