Vividia CX-4010i/CX-4015i 4mm Flexible Joystick Borescope for iOS

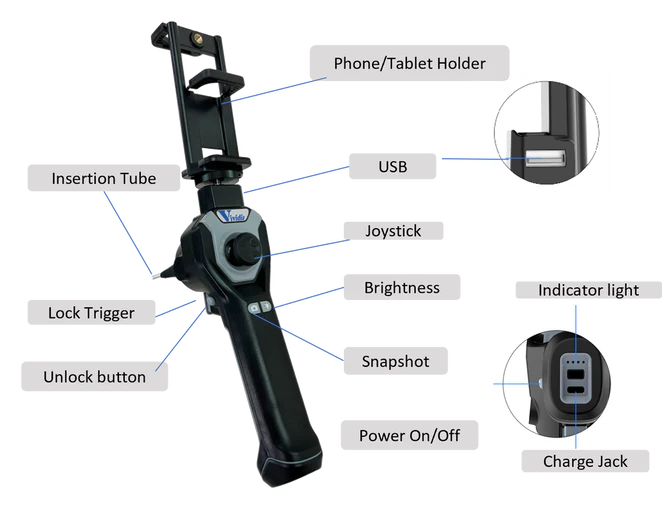

The Vividia CX-4010i Flexible Smartphone Joystick Articulating Inspection Camera Borescope has a 4mm (0.16") diameter and 1 meter flexible probe length. The probe is covered by a metal-mesh tube for durability and IP67 waterproofing & dust resistance. The CX-4010i has bright LED lights, joystick pivoting and can be used to look into dark places as a diagnostical inspection camera. The camera head can be steered with the joystick to all directions and all angles. The CX-4010i can be directly connected to an iPhone, iPad or Android device through a USB cable. With the free app "USee" on the Google Play Store & Apple App Store, one can seamlessly record picture and video directly to their device. With a waterproof flexible insertion tube and probe camera, the Vividia CX-4010i borescope is suitable for many applications. These include but are not limited to looking into engine cylinders, inside airplane wings, behind instrumental panels and inside brake systems. It is also particularly useful for diesel applications due to its small diameter. The Vividia CX-4010i is a fantastic diagnostic inspection camera for auto mechanics and technicians.
The Vividia CX-4015i is the same borescope with a 1.5 meter probe length, making it well suited for jet turbines and gas generators.
Technical Specs:
- Model: CX-4010i or CX-4015i
- Compatible systems: iOS 9.0 and above, Android OS 10 above
- Camera head diameter: 0.16" / 4.0mm
- Camera head bending length: ~ 35mm / 1.38"
- Camera sensor resolution: CMOS, 1280x720
- Focus range: 10mm / 0.4" to infinity
- FOV: 100 degree
- LED lights: 6 white LED lights; 4 levels brightness
- Probe length: 1m / 3.3 ft forCX-4010i; 1.5m / 5ft forCX-4015i
- Probe tube material: Wear-resistant metal mesh
- Articulation type and angles: Joystick 360 all-around, >180 degree
- Waterproof (probe only): Waterproof IP67
- Output: USB-A out
- Battery built-in: Rechargeable lithium, 2600 mAh
- Working time: >3h after full charge
- Dimension (without stand): 195 x 57 x 10 mm
- Weight (without stand): 0.3 kg / 0.66 lbs
- Special features: Auto off; artiuclation angle locking
What's included:
- CX-4010i borescope
- EVA bag
- user manual
- phone/tablet holder
- connection and charging cables
